Midmark Ritter 204 manual examination table similar type / manual examination couch with drawers

Midmark Ritter 204 manual examination table similar type / manual examination couch with drawers

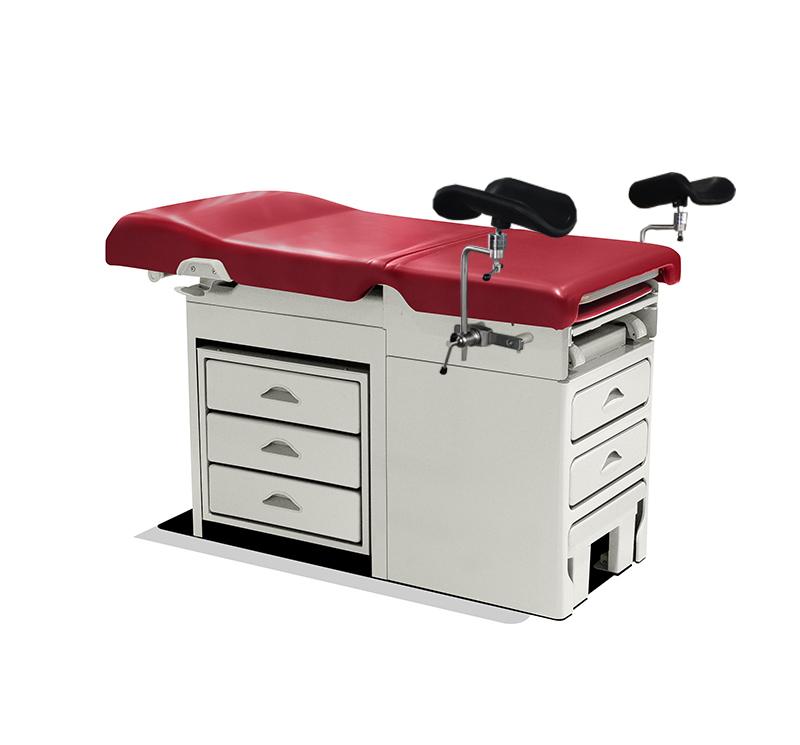

1, This is a manual gynecological chair.

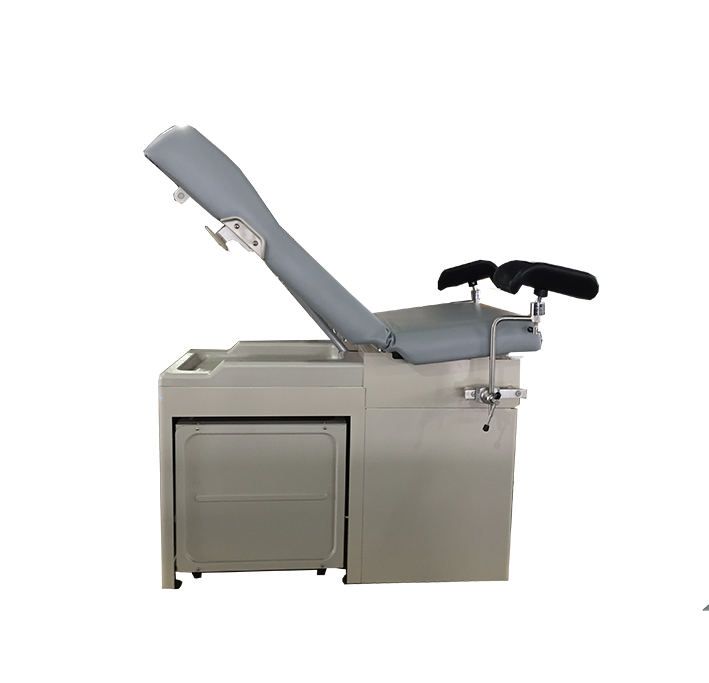

2, The backrest is controlled by gas spring

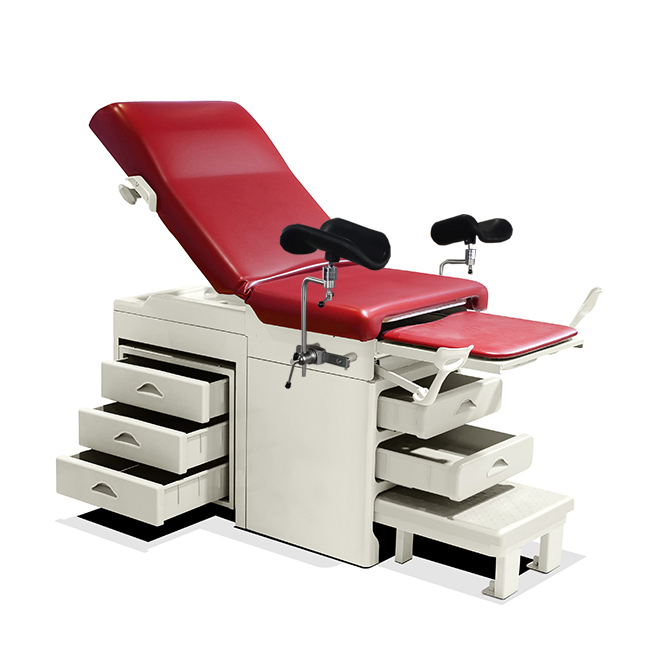

3, With 5 pcs drawers for storaging documentations or tools

4, With a paper roll under back side

5,  With stainles steel treatment pan as a standard accessory

6, Foot stool  can be used for patient  as a step , which is hidden.

7, Mattressis made from mould, with no seam on the surface.

Optional accessories:
1, Assist handles
2, lamp
3, articulating knee crutches

Technical  Parameters

Dimension(Not include handle): 1400 mm X 720 mm X 880 mm

Back section turning angle: 0~70±1°

Slide distant of assist table: 420 mm

Dimension of step: Length 500mm   Height 220mm

Slide distant of foot rest: 275 mm

Swing angle of foot rest: 45°

Max. load: 240kg

Standard Accessories

Heel Support     1 pair

Exam Pan          1pc

Paper Roll Rod    1pc

Side Drawer       3pcs

Front Drawer      2pcs

Step Stool          1pc

cushion              1set

articulating knee crutches  1 set
